Barcode Logics

Metanetics Corporation


---

This video image capture and processing handheld image scanner is the first device to capture 1D (linear) barcodes, 2D barcodes, photographs, signatures, and other graphical elements in a compact "point and shoot" form factor.

---

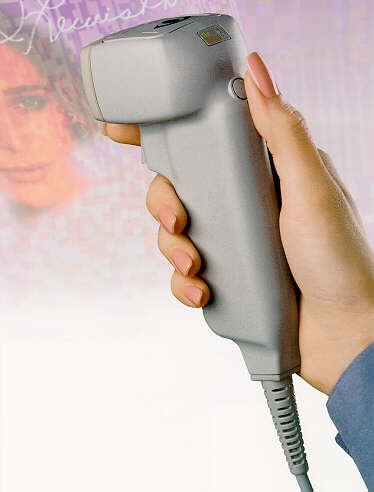

METANETICS HANDHELD IMAGE READER MODEL: IR-2000


[specifications]

---

** Provides high resolution, tramendous depth of field and ultra fast decoding with full 360 degree rotation of codes.
** Capable of reading high density codes with bars as narrow as .0066 inches (6.6 mil).
** The IR-2000 HD reads very high density codes with bars as narrow as .002 inches (2.0 mil).
** Read at distances up to 11.5 inches using 15 mil barcodes..
** Connect to PCs via. a keyboard wedge interface or via RS-232 connection.
** Highly Ergonomic: The IR-2000 weighs only 4.8 ounces. Scanning is intuitive and effortless.
** 2D Codes supported: DataMatrix, PDF 417, Maxicode, Supercode - 1D Codes supported: UPC, EAN, Code 128, Code 39, Code 93, Codabar, Interleaved 2of5.


Model                           IR-2000            IR-2000 HD
                                $1325              $1325

Photographic Pixels MAX         752x574 8-bit      752x574 8-bit
Rotation                        360 degrees        360 degrees
Narrow bar resolution           .0066 inches(6mil) .002 inches (2 mil)
Keyboard Wedge Interface        *                  *
Single RS-232 Interface         *                  *
Wand Emulation                  *                  *
Laser Emulation                 *                  *

Item#          IR-2000/IR-2000 HD                                  PRICE    COMMENT

570004-001     Image Reader IR-2000 Standard                       1325.00  *1, *2
570005-001     Image Reader IR-2000 HD High Density                1325.00  *1, *2
510006-001     Flip Up View Finder                                    5.00
520005-001     RS-232 Cable, Coiled, 6 feet                          75.00
840001-001     110-250 VAC Power Supply                              35.00
900002-001     IR-2000 User Manual                                   25.00
570020-001     Keyboard Wedge System Kit, Wedge Cable AT/PS2        300.00  *3
570030-001     Portable Battery System, Battery Carrier, Pack,      340.00  *3
               Charger.
920006-001     1D Barcode Decode Firmware                            70.00
920008-001     PDF 417    Decode Firmware                           200.00
920007-001     Supercode  Decode Firmware                            50.00
920009-001     MaxiCode   Decode Firmware                           200.00
920010-001     DataMatrix Decode Firmware                           250.00
920011-001     Image Capture Firmware                               350.00
920012-001     Signature Compresion Firmware                        350.00

   *1 Cable Required. *2 Requires Power Supply. *3 Requires Scanner.

---
